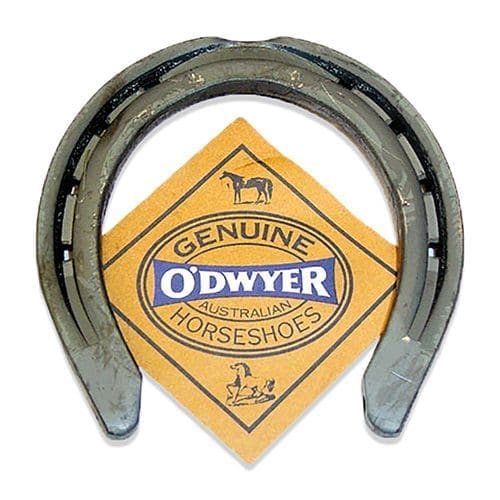

O’DWYER HORSE SHOES – FLAT HACK (SET OF 4)

• Quality horse shoes suitable for the working horse
• The Flat Hack Shoe (FHS) range is made using carbon steel and a unique manufacturing process which maintains web width throughout the entire bars length
• This results in greater coverage at the heels, compared to a traditional flat shoe
• This easily shaped shoe is packaged in sets (front and hind top clipped versions)
• Size 1-4 are a 20x8mm cross section whilst the larger shoes in the range (5,6,7) are a heavier 22x8mm section
• A full set (4) of front and hind
• Suitable for Beveled Head (BH) nails

O'DWYER FLAT HACK HORSE SHOE - TOE CLIP FRONT

Size Nail Width Depth Web Bar Length
1 BH, Combo 118mm 113mm 20mm x 8mm 270mm
2 BH, Combo 123mm 118mm 20mm x 8mm 282mm
3 BH, Combo 128mm 122mm 20mm x 8mm 296mm
4 BH, Combo 133mm 127mm 20mm x 8mm 308mm
5 BH, Combo 139mm 131mm 22mm x 8mm 320mm
6 BH, Combo 144mm 136mm 22mm x 8mm 333mm
7 BH, Combo 149mm 140mm 22mm x 8mm 346mm

O'DWYER FLAT HACK HORSE SHOE - TOE CLIP HIND

Size Nail Width Depth Web Bar Length
1 BH, Combo 116mm 115mm 20mm x 8mm 270mm
2 BH, Combo 120mm 119mm 20mm x 8mm 282mm
3 BH, Combo 126mm 124mm 20mm x 8mm 296mm
4 BH, Combo 130mm 129mm 20mm x 8mm 308mm
5 BH, Combo 136mm 133mm 22mm x 8mm 320mm
6 BH, Combo 141mm 138mm 22mm x 8mm 333mm
7 BH, Combo 146mm 142mm 22mm x 8mm 346mm
